Product Introduction
Sucetong DP series automatic barcode scanning and weighing matrix sorting equipment integrates barcode and weight automatic collection and entry system, and cooperates with printer to print face sheets in real time.
The sorting speed is fast and efficient, and the floor space is small. The system operation is simple and clear, easy to learn and understand, make full use of the generated information resources, reduce the workload of information entry, and reduce the labor intensity of operators.
HSJ-Sucetong DP26 (standard 26 grids, can be customized) automatic scanning code weighing and sorting equipment, using Haikang machine scanning code camera, industrial pressure sensor, stable and reliable data, accurate data, can realize the barcode scanning of regular and irregular goods , weighing, sorting system judgment and data upload functions, modular design, small footprint, powerful functions, the best assistant for logistics and e-commerce enterprises sorting!
Fast sorting, DP26 matrix type automatic sorter (standard 26 bays, can be customized), accurate and efficient, ±1g average measurement accuracy, sorting efficiency up to 1500-2000 pieces/hour
Product Features
Function customization and features
Function customization:
According to your needs, you can customize functions such as high-definition pictures, barcode visualization, picture naming, object shape classification, and condition restrictions.
Features:
Sucetong DP26 automatic scanning code weighing matrix sorting equipment, data can be stored immediately after measurement, data can be exported at any time, accurate to any time; suitable for the measurement of various logistics packages, regular/irregular, the workbench can be placed arbitrarily, It can be used in scenarios such as logistics sorting and factory manufacturing lines.
Product composition:
Integrated welding paint rack, TPC6000 industrial control host (mouse/keyboard/power adapter), Hikvision smart camera-set, weighing system (one dynamic scale/meter), 5M multi-hole power strip, Lenovo monitor, one sorting rack A group, a group of connecting belts, a group of PLC electronic control system.

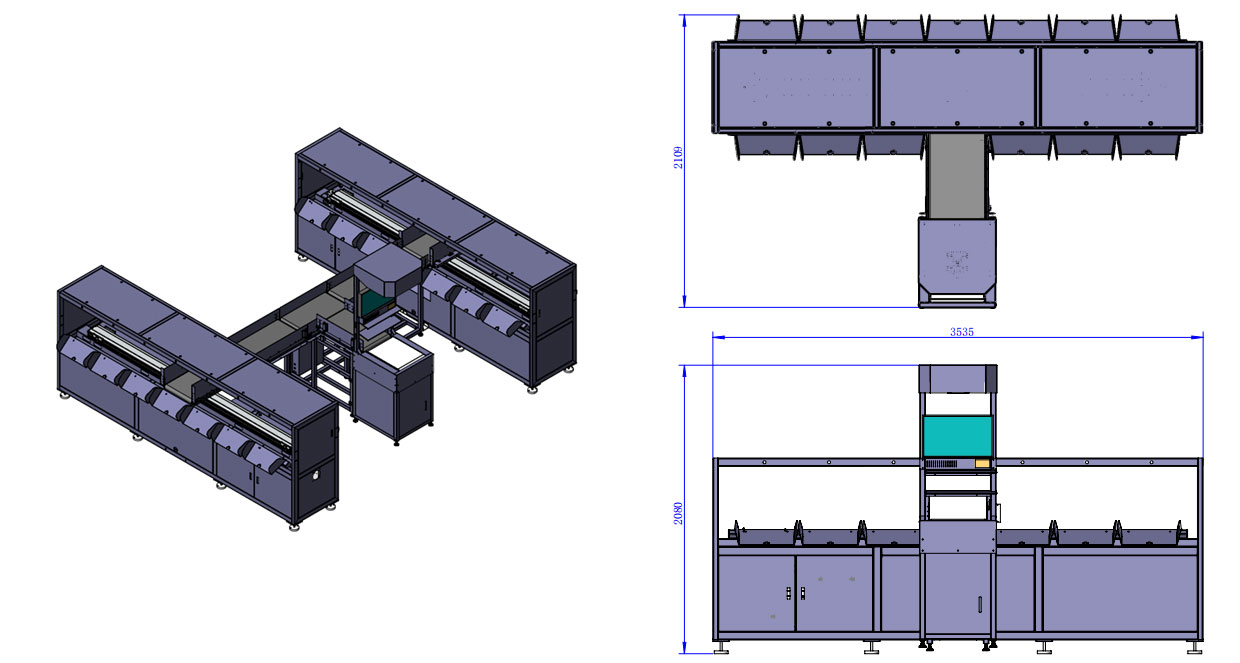

Structure size (can be customized):
Product parameters
| Device name | HSJ-Sucetong-Matrix Sorter-DP26 |
| Scanning equipment | Haikang machine scan code camera |
| Measurement principle | Scan code measurement |
| Measure size | Maximum 400*380*300MM Minimum 100*100*10MM |
| Equipment size | 4155MM*3530MM*2100MM (standard size, custom grid size is calculated separately) |
| Weight accuracy | ±1g |
| Measuring speed | 1500-2000 pieces/hour |
| Data output | Excel/Http/Websocket,Serial port optional (interface RS232) |
| Machine power | 220V 2500W |
| Measure weight | 5g~6000g |
| Package type | Regular/Irregular/Shaped/Thin |
| Placement requirements | Arbitrary placement |
| Super thin object | Support thin parts measurement |
| Supported formats | Data upload, photo storage, system docking, barcode filtering, abnormal handling of super long pieces, network transmission |
| Tape removal | support |
| System Support | Windows10 |
| Working temperature and humidity | -5~40℃ / 0-80% |
| Multi-language | support multi-language |
After-sales service
| Honorary customer | China Post, Yunchao Logistics, Wanyitong Logistics, Yuntu Logistics, Export Easy Logistics, Yida International Logistics, etc. |
| Delivery period | About 15 working days for equipment production + software debugging (excluding shipping time and time required for custom hardware) |
| Warranty time | 1. If the main unit of the product has a performance failure due to non-human damage, seven-day free return, replacement, and warranty; 15-day free replacement and warranty; one-year warranty; 2. The product software has a performance failure due to non-human damage, and the product will be delivered for free within one year. Update the product system software; 3. Within the scope of the warranty, if the whole machine is replaced (excluding accessories), the warranty period of the replaced product will be recalculated according to the Three Guarantees Law; 4. Gifts and accessories do not participate in the warranty; |
| After-sale warranty | If the customer finds a problem, the on-site personnel can feedback the problem to the person in charge of the project in the computer department, and then the person in charge will contact our technical staff. We will give you a reply within four hours and deal with it within 48 hours (48 hours is in Shenzhen. In the urban area, other areas will be processed within 54 hours) Open 24-hour after-sales service hotline: +86-13316986889 |
