Product Introduction
QuickTest KS series desktop automatic weighing and measuring volume system integrates barcode, weight and volume information automatic collection and input system, and prints face sheets in real time with printer.
High speed, high efficiency, and small footprint. The system operation is simple and clear, easy to learn and understand, make full use of the generated information resources, reduce the workload of information entry, and reduce the labor intensity of operators.

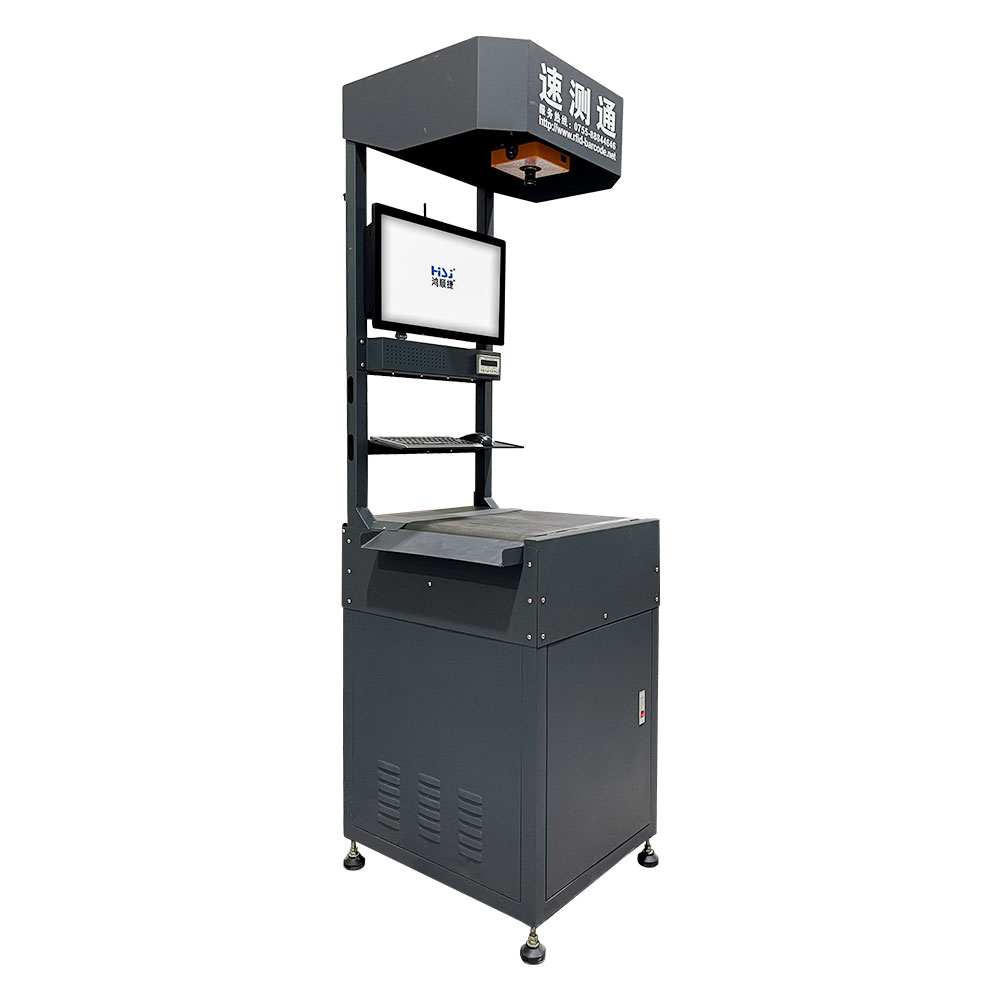

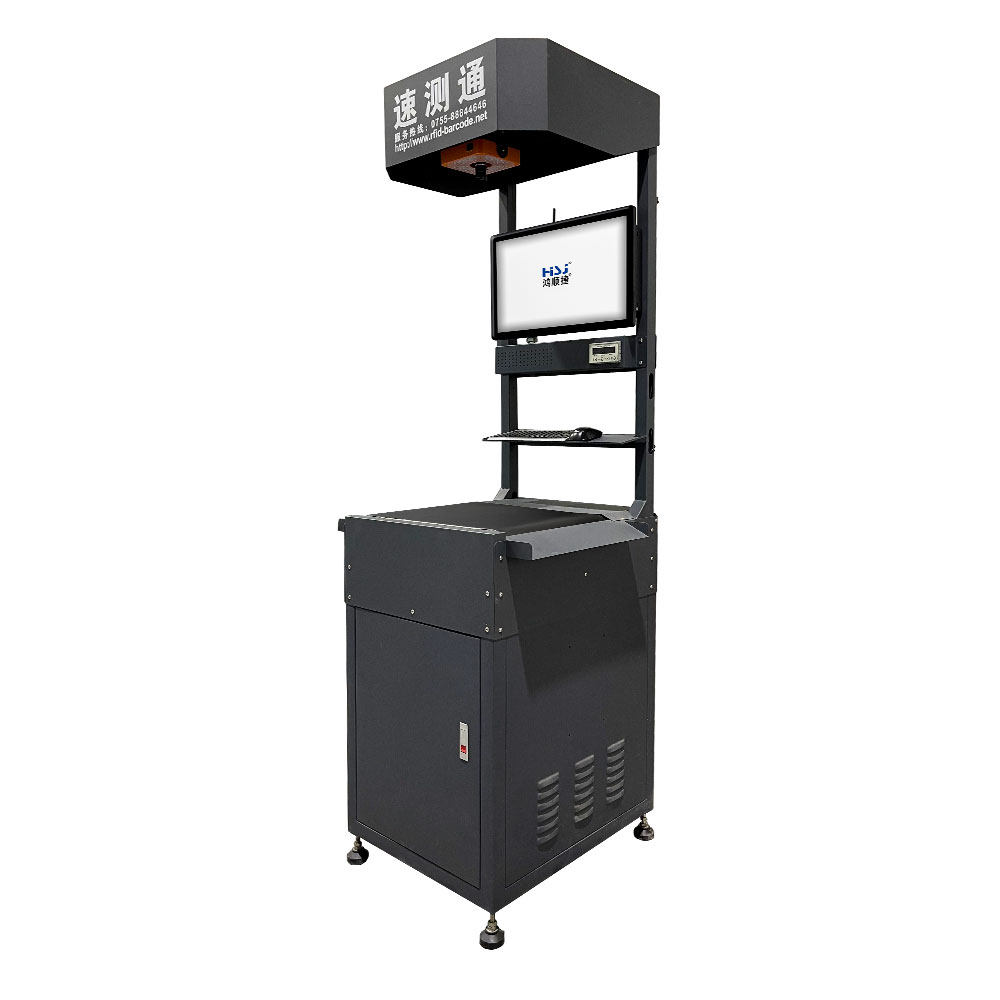

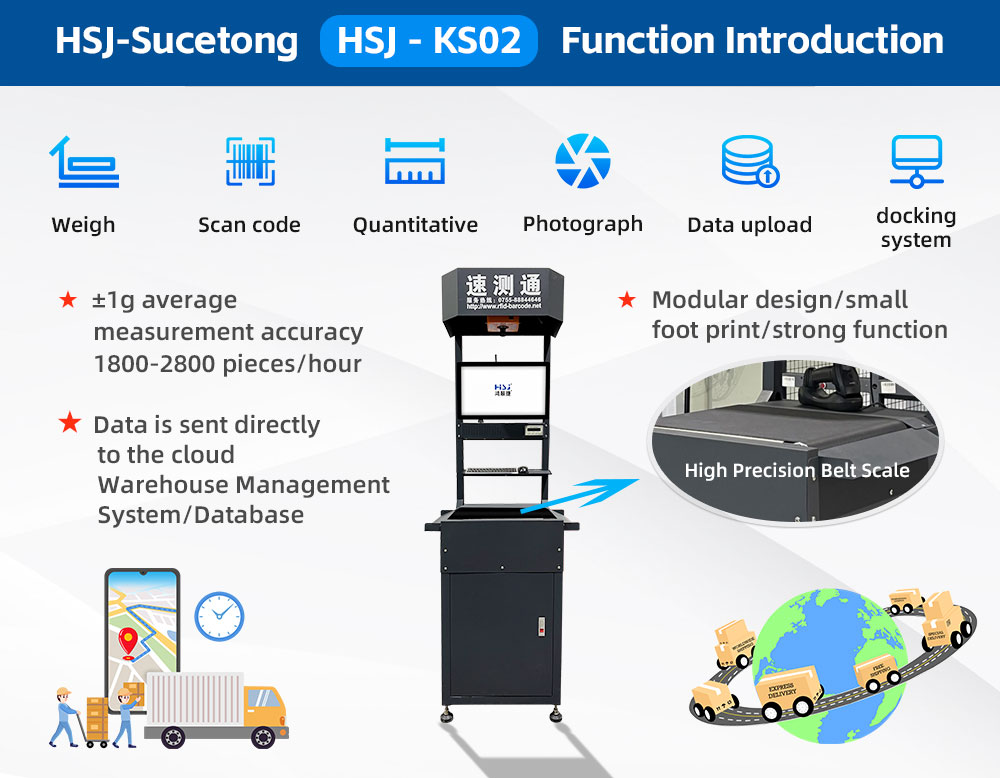

Speedtest KS-02 desktop automatic barcode scanning weighing and sorting system (belt scale), using industrial pressure sensor, stable and reliable, accurate weighing, can realize barcode scanning, weighing, system data uploading, etc. of regular and irregular goods Function, modular design, small footprint and powerful functions, it is the right assistant for logistics enterprise sorting.
Regular/irregular irregular-shaped drum bag measurement, belt-type fast sorting, ±1g average measurement accuracy, sorting efficiency up to 1800-2800 pieces/hour
Product Features
Function customization and features
Function customization:
According to your needs, you can customize functions such as high-definition pictures, barcode visualization, picture naming, object shape classification, and condition restrictions.
Features:
The data can be stored immediately after the measurement, and the data can be exported at any time, accurate to any time; it is suitable for the measurement of small and medium-sized products, regular/irregular, the workbench can be placed arbitrarily, and can be used in scenarios such as logistics sorting and factory manufacturing lines.
Product composition:
Integrated welding frame, painted sheet metal panel; code scanning camera, weighing system (weighing sensor, meter, power adapter), industrial control host (IPC6000), Lenovo display.
Structure size (can be customized):
Product parameters
| Device name | HSJ-Sucetong-HSJ-KS02 |
| Scanning equipment | Hikvision Smart Camera |
| Measurement principle | Scan code weighing (belt scale) measurement |
| Measure size | Maximum 400*380*300MM Minimum 100*100*10MM |
| Equipment size | 650MM*700MM*2100MM |
| Weight accuracy | ±1g |
| Measuring speed | 1800-2800 pieces/hour |
| Data output | Excel/Http/Websocket,Serial port optional (interface RS232) |
| Machine power | 220V 800W |
| Measure weight | 5g~6000g |
| Scan code | Handheld Scanner/Industrial Camera (MV-PD010003) |
| Package type | Regular/Irregular/Shaped/Thin |
| Placement requirements | Arbitrary placement |
| Super thin object | Support thin parts measurement |
| Supported formats | Data upload, photo storage, system docking, barcode filtering, abnormal handling of super long pieces, network transmission |
| Tape removal | Support |
| System Support | Windows10 |
| Working temperature and humidity | -5~40℃ / 0-80% |
| Multi-language | Support multi-Language |
After-sales service
| Honorary customer | Yuantong Express, Debon Logistics, Yunda Express, Jingdong Logistics, Export Easy Logistics, Yida International Logistics, etc. |
| Delivery period | About 15 working days for equipment production + software debugging (excluding shipping time and time required for custom hardware) |
| Warranty time | 1. If the main unit of the product has a performance failure due to non-human damage, seven-day free return, replacement, and warranty; 15-day free replacement and warranty; one-year warranty; 2. The product software has a performance failure due to non-human damage, and the product will be delivered for free within one year. Update the product system software; 3. Within the scope of the warranty, if the whole machine is replaced (excluding accessories), the warranty period of the replaced product will be recalculated according to the Three Guarantees Law; 4. Gifts and accessories do not participate in the warranty; |
| After-sale warranty | If the customer finds a problem, the on-site personnel can feedback the problem to the person in charge of the project in the computer department, and then the person in charge will contact our technical staff. We will give you a reply within four hours and deal with it within 48 hours (48 hours is in Shenzhen. In the urban area, other areas will be processed within 54 hours) Open 24-hour after-sales service hotline: +86-13316986889 |
